Online First

Synthesis and Structure of the Novel Mononuclear Copper(II) Complex of the Unsymmetrical Pyrimidine-Modulated Long-Chain Hexapyridylpentaamine Ligand

Authors

  • Sabina Z. Ismayilova Institute of Catalysis and Inorganic Chemistry named after acad. M. Nagiyev, Ministry of Science and Education of the Republic of Azerbaijan, Baku, Azerbaijan https://orcid.org/0000-0002-3957-7996
  • Lala Sh. Guliyeva Institute of Catalysis and Inorganic Chemistry named after acad. M. Nagiyev, Ministry of Science and Education of the Republic of Azerbaijan, Baku, Azerbaijan https://orcid.org/0009-0000-8477-916X
  • Rayyat H. Ismayilov Institute of Catalysis and Inorganic Chemistry named after acad. M. Nagiyev, Ministry of Science and Education of the Republic of Azerbaijan, Baku, Azerbaijan https://orcid.org/0009-0004-7753-6468
  • Dilgam B. Tagiyev Institute of Catalysis and Inorganic Chemistry named after acad. M. Nagiyev, Ministry of Science and Education of the Republic of Azerbaijan, Baku, Azerbaijan
  • Fuad F. Valiyev “OilGasScientificResearchProject” Institute, SOCAR, Baku, Azerbaijan https://orcid.org/0009-0004-1120-8728
  • Bahattin Yalcin Department of Chemistry, Marmara University, Kadikoy, Istanbul, Turkiye
  • Ajdar A. Medjidov Institute of Catalysis and Inorganic Chemistry named after acad. M. Nagiyev, Ministry of Science and Education of the Republic of Azerbaijan, Baku, Azerbaijan https://orcid.org/0000-0002-1766-5450
  • Mansura T. Huseynova Institute of Chemistry and Additives, Ministry of Science and Education of the Republic of Azerbaijan, Baku, Azerbaijan https://orcid.org/0000-0002-1534-6819
  • Su-Ying Chien X-Ray Laboratory, Institute of Chemistry, Academia Sinica, Taiwan, China
  • Gene-Hsiang Lee Department of Chemistry, National Taiwan University, Taipei, Taiwan, China
  • Shie-Ming Peng Department of Chemistry, National Taiwan University, Taipei, Taiwan, China

DOI:

https://doi.org/10.31489/2959-0663/4-25-6

Keywords:

modulated oligo-α-aminopyridine ligand, long-chain ligand, copper complex, crystal structure, addison parameter, hydrogen bonds, spectroscopy, magnetic measurement

Abstract

Through the pyrimidine-modulated hexapyridylpentaamine ligand N2-(pyridin-2-yl)-N6-(6-((6-((6-(pyrim­idin-2-ylamino)pyridin-2-yl)amino)pyridin-2-yl)amino)pyridin-2-yl)pyridine-2,6-diamine (H5N11-tpm), a new mononuclear copper(II) complex [Cu(H5N11-tpm)](ClO4)2 (1) were synthesized and structurally characterized. The single crystal X-ray analysis showed distorted trigonal bypyramidal geometry (Addison parameter value τ = 0.69) of the complex (1), which is well consistent with the “inverted type” of ESR spectra (g∥ < g⊥), measured magnetic susceptibility, and electronic spectroscopy studies. The equatorial copper-nitrogen distances (Cu–N(1) = 2.094(9) Å; Cu–N(5) = 2.045(9) Å; Cu–N(9) = 2.214(9) Å), along with the axial Cu–N distances (Cu–N(3) = 1.999(9) Å and Cu–N(7) = 2.001(9) Å), fall well within the range typically reported for Cu(II) complexes that incorporate this type of ligand. All Cu–N distances are short, ranging from 1.999(9) to 2.094(9) Å, which suggests a strong binding affinity of the chelating ligand. The monohelical H5N11-tpm ligand coordinates with the metal atom, exhibiting an all-anti conformation. The extensive hydrogen bonds were observed between the amino groups and uncoordinated perchlorate anions, resulting in the formation of a three-dimensional network (3D) of the complex. The synthesized complex has high potential for the creation of novel cholinesterase inhibitors since it contains a number of pyridine and pyrimidine rings.

References

Berry, J. F., Cotton, F. A., Daniels, L. M., & Murillo, C. A. (2002). Trinickel Dipyridylamido Complex with Metal-Metal Bonding Interaction: Prelude to Polynickel Molecular Wires and Devices. J. Am. Chem. Soc., 124, 3212–3213. https://doi.org/10.1021/ja025543i

Ting, T.C., Hsu, L.Y., Huang, M.J., Horng, E.C., Lu, H.C., Hsu, C.H., Jiang, C.H., Jin, B.Y., Peng, S.M., & Chen, C.H. (2015). Energy-Level Alignment for Single-Molecule Conductance of Extended Metal-Atom Chains. Angew. Chem. Int. Ed., 54, 15734–15738. https://doi.org/10.1002/anie.201508199

Ismayilov, R.H., Ismayilova, S.Z., Tagiyev, D.B., Medjidov, A.A., Jafarov, Y.I., Wang, W.Z., Yeh, C.Y., Chien, S.Y., Lee, G.H., & Peng, S.M. (2025). Linear nonanuclear chromium(II) complex with pyrazine-modulated pentapyridyltetraamine ligand: Synthesis, structure and properties. J. Mol. Struct. 1331, 141592. https://doi.org/10.1016/j.molstruc.2025.141592

Ismayilov, R.H., Valiyev, F.F., Tagiyev, D.B., Song, Y., Medjidov, A.A., Fatullayeva, P.A., Tüzün, B., Taslimi, P., Peng, C.H., Chien, S.Y., Lee, G.H., & Peng, S.M. (2024). Trinuclear nickel (II) string complexes and copper (II) coordination polymer with pyrazine modulated unsymmetrical dipyridylamino ligand: Synthesis, structure and bioactivity properties with molecular docking. J. Mol. Struct., 1307, 137966. https://doi.org/10.1016/j.molstruc.2024.137966

Chae, D.H., Berry, J.F., Jung, S., Cotton, F.A., Murillo, C.A., & Yao, Z. (2006). Vibrational Excitations in Single Trimetal-Molecule Transistors. Nano Lett., 6, 165–168. https://doi.org/10.1021/nl0519027

Ismayilov, R.H., Valiyev, F.F., Tagiyev, D.B., Song, Y., Israfilov, N.V., Wang, W.-Z., Lee, G.-H., Peng, S.-M., & Suleimanov, B.A. (2018). Linear pentanuclear nickel(II) and tetranuclear copper(II) complexes with pyrazine-modulated tripyridyldiamine ligand: Synthesis, structure and properties. Inorganica Chimica Acta 483, 386–391. https://doi.org/10.1016/j.ica.2018.08.045

Abbasova, G.G., Ismayilov, R.H., Tagiyev, D.B., Şenol, H., Song, Y., Medjidov, A.A., Huseynova, M.T., Fatullaeva, P.A., Taslimi, P., Sadeghian, N., Lee, G.H., & Peng, S.M. (2024). Synthesis, characterization, crystal structure, molecular dynamics simulations, MM-GBSA analysis, and bioactivity studies of pyrazine- and pyrimidine-modulated unsymmetrical dipyridylamide complexes. J. Mol. Struct., 1315, 138896. https://doi.org/10.1016/j.molstruc.2024.138896

Brogden, D.W. & Berry, J.F. (2015). Coordination Chemistry of 2,2’-Dipyridylamine: The Gift That Keeps on Giving. Comments Inorg. Chem., 17–37. https://doi.org/10.1080/02603594.2015.1079522

Ismayilov, R.H., Wang, W.Z., Wang, R.R., Yeh, C.Y., Lee, G.H., & Peng, S.M. (2007). Four quadruple metal–metal bonds lined up: linear nonachromium(II) metal string complexes. Chem. Commun. 1121–1123. https://doi.org/10.1039/B614597C

Yeh, C.Y., Wang, C.C., Chen, Y.H., & Peng, S.M. (2006). Redox Systems Under Nano-Space Control. Redox Systems Under Nano-Space Control. Springer Berlin Heidelberg. https://doi.org/10.1007/3-540-29580-1

Wang, W.Z., Ismayilov, R.H., Lee, G.H., Liu, I.P.C., Yeh, C.Y., & Peng, S.M. (2007). The nano-scale molecule with the longest delocalized metal–metal bonds: linear heptacobalt(II) metal string complexes [Co7(μ7-L)4X2]. Dalton Trans., 830–839. https://doi.org/10.1039/B614661A

Ismayilov, R.H., Wang, W.Z., Lee, G.H., & Peng, S.M. (2006). One-, two- and three-dimensional Cu(II) complexes built via new oligopyrazinediamine ligands: from antiferromagnetic to ferromagnetic coupling. Dalton Trans., 478–491. https://doi.org/10.1039/B507485A

Guliyeva, L. Sh., Ismayilova, S. Z., Ismayilov, R. H., Tagiyev, D. B., Yalcin, B., Medjidov, A. A., Peng, C. H., Chien, S. Y., & Lee, G. H. (2025, June 3–5). Copper(II) monohelix complex with pyrimidine-modulated long-chain oligo-α-aminopyridine ligand: Synthesis and crystal structure. In International UFAZ Conference: Chemistry, Process, Materials (pp. 42–43).

Hasanov, H., Tan, U.K., Wang, R.R., Lee, G.H., & Peng, S.M. (2004). Synthesis of long-chained oligo-a-aminopyridines by tandem Pd-catalyzed cross-coupling aminations and their helical dinuclear complexes. Tetrahedron Letters, 7765-7769. https://doi.org/10.1016/j.tetlet.2004.08.066

Sheldrick, G.M. (2008). A short history of SHELX. Acta Cryst., A64, 112. http://dx.doi.org/10.1107/S0108767307043930

Sheldrick, G.M. (2015). Crystal structure refinement with SHELXL. Acta Crys. C71, 3–8. http://dx.doi.org/10.1107/S2053229614024218

Ismayilova, S.Z., Ismayilov, R.H., Tagiyev, D.B., Yalcin, B., Şahin, O., Medjidov, A.A., Huseynova, M.T., Guliyeva, L.Sh., Gasimov, R.J., & Peng, S.M. (2025). Copper(II) complex of the pyrazine-modulated oligo-α-aminopyridine as a coordination polymers' promising building block. Chem. Probl., 4(23), 476–482. https://doi.org/10.32737/2221-8688-2025-4-476-482

Ismayilova, S.Z., Huseynova, M.T., Ismayilov, R.H., & Medjidov, A.A. (2024). Synthesis and properties of CuII complex of benzidine-N,N,N′,N′-tetraacetic acid. Azerbaijan Chem. J., 3, 69–75. https://doi.org/10.32737/0005-2531-2024-3-69-75

Vicente, M., Bastida, R., Macías, A., Valencia, L., Geraldes, C.F.G.C., & Brondino, C.D. (2005). Copper complexes with new oxaaza-pendant-armed macrocyclic ligands: X-ray crystal structure of a macrocyclic copper(II) complex. Inorg. Chim. Acta, 358, 1141–1150. https://doi.org/10.1016/j.ica.2004.11.006

Aljahdali, M., & EL-Sherif, A.A. (2013). Synthesis, characterization, molecular modeling and biological activity of mixed ligand complexes of Cu(II), Ni(II) and Co(II) based on 1,10-phenanthroline and novel thiosemicarbazone. Inorg. Chim. Acta, 407, 58-68. https://doi.org/10.1016/j.ica.2013.06.040

Chandra, S., & Gupta, L.K. (2005). EPR, mass, IR, electronic, and magnetic studies on copper(II) complexes of semicarbazones and thiosemicarbazones. Spectrochimica Acta Part A, 61, 269–275. https://doi.org/10.1016/j.saa.2004.03.040

Jozefíkova, F., Perontsis, S., Konarikova, K., Svorc, L., Mazúr, M., Psomas, G., & Moncol, J. (2022). In vitro biological activity of copper(II) complexes with NSAIDs and nicotinamide: Characterization, DNA- and BSA-interaction study and anticancer activity. J. Inorg. Biochem., 228, 111696. https://doi.org/10.1016/j.jinorgbio.2021.111696

Valko, M., Pelikán, P., Biskupič, S., & Mazúr, M. (1990). ESR spectra of copper(II) complexes in the solids. Chem. Papers, 44, 805–813.

Korkmaz, Ş.A., Karadağ, A., Yerli Y., & Soylu, M.S. (2014). Synthesis and characterization of new heterometallic cyanido complexes based on [Co(CN)6]3– building blocks: crystal structure of [Cu2(N-bishydeten)2Co(CN)6]·3H2O having a strong antiferromagnetic exchange. New. Chem. 38, 5402–5410. https://doi.org/10.1039/C4NJ00737A

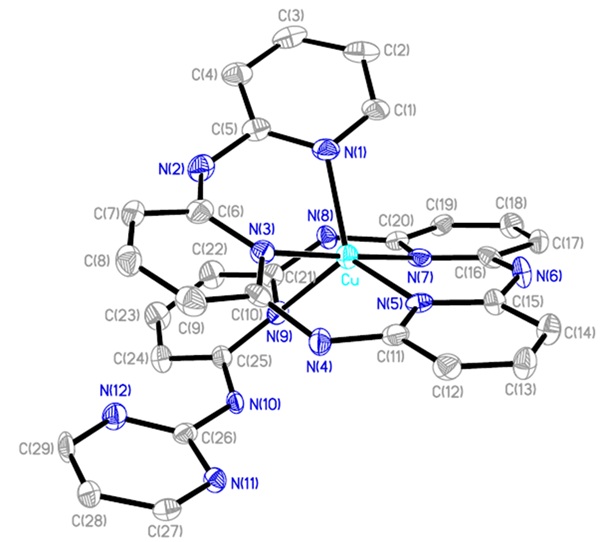

The molecular structure of [Cu(H5N11-tpm)](ClO4)2 1
